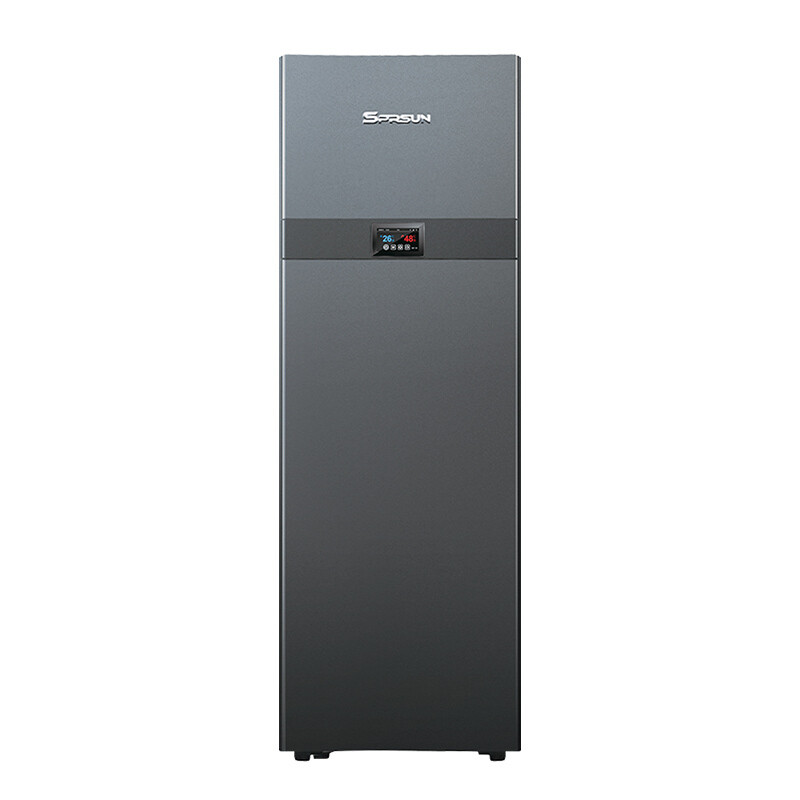

SPRSUN INTEGRAL HYDRAULIC BOX CGH06HR150 230V

Sheet Metal

Galvanized plate sand gray + matte black spray

3-Way Valve

DN25

Electric Heater

3kW/220-240V~

Expansion Tank（L）

5

AC Contactor（A）

32A（Explosion proof relay）

Package

Splint

Heat Exchange Coil（SUS304 corrugated pipe）

DN32*15m

Controller Brand

CAREL

others

Built-in drain valve and exhaust valve

Buffer water tank

60L

Hot water tank

150L

Domestic hot water pipe connection size

Cold water inlet DN15, hot water outlet DN20/external wire

Heat pump/buffer tank connection size

DN25/outer wire

Exhaust Pipe Size

DN15（Female thread）

Power Supply（V）

220-240~

Power

Hot water electric heater 3KW + heating electric heater 3KW

Current（A）

13.6A+13.6A

Max. water temp.

75℃

Net weight (kg)

126

Gross weight of plywood packaging (kg)

148

Net Dimension（mm）

585*630*1865mm
