Samsung Heat Pump SET-Mono HT R290 5kW | 230V | 1Ph w. ClimateHub 200L incl. remote control
+14
+13
+12
+11
+10
+9
+8
+7
+6
+5
+4
+3
+2

Samsung Heat Pump SET-Mono HT R290 5kW | 230V | 1Ph w. ClimateHub 200L incl. remote control

SKU WPHM-R290-5-200
€13 491.74
In stock
Save this product for later
Share this product with your friends
ShareSharePin it
Samsung Heat Pump SET-Mono HT R290 5kW | 230V | 1Ph w. ClimateHub 200L incl. remote control
Product Details
Marke: Samsung

Samsung Heat Pump SET-Mono HT R290 5kW | 230V | 1Ph w. ClimateHub 200L incl. remote control (Cooling and Heating)

(WPLW-Hub Mono HT R290-5-200 - EHS R290 NASA Heat Pump incl. int. BWS 230V - 5.0 kW)

Art.No.: WPHM-R290-5-200

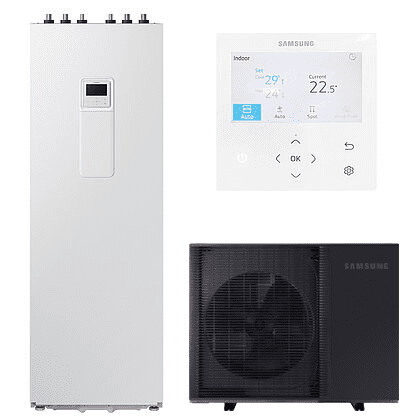

Set consisting of:

Mono outdoor unit, 5 KW = AE050CXYDEK/EU

Integrated Hydro Unit 200l = AE200CNWMEG/EU

Remote control = MWR-WW10N

5.0 KW heating /5.0 KW cooling

220-240V |1PH | 50 Hz |R290

COP 5.00 /EER 3.91

SCOP 35° = 5.00 /55° = 3.60

Technical data:

Air-to-water heat pump with integrated domestic hot water cylinder and optional PV-supported domestic hot water heating incl. auxiliary heater, electric heating element and high-efficiency pump

Infinitely variable output control

Outstanding energy efficiency values A+++

PV and smart grid ready

Heating and optional cooling mode

Flow temperature from 5°C - 75°C

Reliable operation down to -25°C outside temperature

4-stage TA night silent mode (35dB/A)

2 zone control for radiators, panel heating or recirculation fan coils

Stainless steel storage tank (SUS316L) non-rusting. Resistant to corrosion (200l & 260l) with adjustable feet and legionella control

Intuitive operation, energy monitoring and water flow monitoring via color touchscreen remote control

Integrated Wi-Fi

Connectivity with SmartThings Wi-Fi, Home IoT, Bixby voice control, KNX, Modbus BACnet and LonWorks

BAFA | KfW listed - eligible for funding with efficiency bonus

Heat pump electricity tariff compliant. The EVU release and controlled switch-off takes place via a contact assignment - no voltage interruption

Accessories:

Additional heating heating circuit with 4kW/h or 6kW/h


WPLW-Hub Mono HT R290-5-200 - EHS R290 NASA heat pump with integrated BW storage tank - Samsung
- EHPA seal of approval
- Quiet-Mark
- Color outdoor unit: anthracite

Heating (water on/off 30°C/35°C) 5.0 kW
Heating (water on/off 47°C/55°C) 5.0 kW
Outside air 7°C [TK]/6°C [FK]
ECO S-Inverter | 230V|1Ph|50Hz | Refrigerant R290
Tank capacity 200 liters

Scope of delivery:
- Heat pump outdoor unit AE050CXYDEK/EU
- Hydro unit with integrated domestic hot water storage tank AE200CNWMEG/EU
- incl. touch operation
- incl. built-in WiFi module


Show More
