Samsung heat pump SET complete system for new build and refurbishment, Mono HT R290 wall-mounted hydro unit and external domestic hot water tank Eco Mono-HT R290 5kW | 230V | 1Ph w. (Heating/Cooling)

Samsung heat pump SET complete system for new build and refurbishment,

Mono HT R290 wall-mounted hydro unit and external domestic hot water tank Eco Mono-HT R290 5kW | 230V | 1Ph w. control unit incl. remote control (Heating/Cooling)

(WPLW-Mono HT R290-5-RE - EHS R290 NASA Wärmepumpe mit ext. BWS 230V - 5.0 kW)

Article no.: WPM-R290-5-RE

Mono HT Quiet 5kWm. Control unit incl. remote control

Version 230V |1Ph | R290

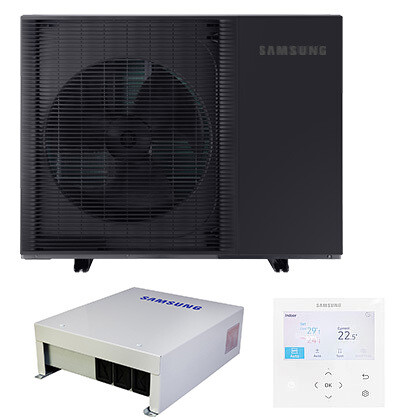

Set consisting of:

Mono outdoor unit, 5KW = AE050CXYDEK/EU

Control unit = MIM-E03EN

incl. remote control MWR-WW10N

5.0 KW heating |5.0 KW cooling

COP 5.00 / EER 3.91

SCOP 35° = 5.00/55° = 3.60

Technical data:

- Air-to-water heat pump for connection to on-site storage tank. PV-supported domestic hot water heating control incl. auxiliary heating, electric heating element, pump, legionella circuit, etc.

- Infinitely variable output control

- Outstanding energy efficiency values A+++

- PV and smart grid ready

- Heating and optional cooling mode

- Flow temperature from 5°C - 75°C

- Reliable operation down to -25°C outside temperature

- 4-stage TA night silent mode (35dB/A)

- 2 zone control for radiators, panel heating or recirculation fan coils

- Intuitive operation, energy monitoring and water flow monitoring via color touchscreen remote control

- Connectivity with SmartThings Wi-Fi, Home IoT, Bixby voice control, KNX, Modbus BACnet and LonWorks

- BAFA | KfW listed - eligible for funding with efficiency bonus

- Heat pump electricity tariff compliant. The EVU release and controlled switch-off takes place via a contact assignment - no voltage interruption
