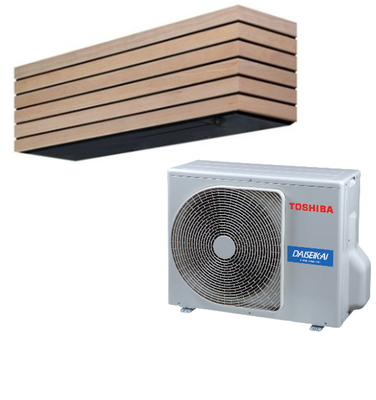

TOSHIBA RAS-Daiseikai 10 WOOD R32 2,5 (0,6-3,5) kW
SKU RAS-B10S4KVDG-E/RAS-10S4AVPG-E
€2 770.88
TOP DESIGN
In stock
Save this product for later
TOSHIBA RAS-Daiseikai
10 WOOD R32 2,5 (0,6-3,5) kW
Product Details
| Rated cooling capacity | •2,5 kW | •3,5 kW | •4,5 kW |
| Power range | • 0,80-3,50 kW | • 0,90-4,10 kW | • 0,90-5,10 kW |
| Power consumption | • 0,45 kW | • 0,75 kW | • 1,08 kW |
| Nominal heating power | • 3,2 kW | •4,0 kW | • 5,5 kW |
| Power range | • 0,70-5,80 kW | • 0,80-6,30 kW | • 0,80-6,80 kW |
| Power consumption | • 0,60% | • 0,80% | • 1,37 kW |
| Heating capacity biy-10°C | • 3,38 kW | • 3,88 kW | • 4,18 kW |
| Annual energy consumption cooling/heating | • 83 / 9 807 kWh | • 129 / 0 988 kWh | • 185 / 1.369 kWh |
| PDesignH (heating) | 3,0 kW | 3,6 kW | 4,5 kW |
| Energy label cooling/SEER | A+++ | A+++ | A+++ |
| Energy label heating/SCOP | A+++ | A+++ | A++ |
| Electrical connection | 230 V/1 ph/50 Hz | 230 V/1 ph/50 Hz | 230 V/1 ph/50 Hz |
| Power supply on | 'inner part or outer part' | 'inner part or outer part' | 'inner part or outer part' |
| Number of wires indoor/outdoor | 4 | 4 | 4 |
| Fuse rating | 16 A | 16 A | 16 A |
| Cooling connection | 1/4" x 3/8" flare | 1/4" x 3/8" flare | 1/4" x 1/2" flare |
| Cooling pipe length max. | 15/25** m | 15/25** m | 15/25** m |
| Cooling line length min. | 2m | 2m | 2m |
| Maximum height difference | 10 m | 10 m | 10 m |
| Refrigerant content R32 | 10kg | 1,0 kg | 1,0 kg |
| Additional refrigerant | 20g/m | 20 g/m | 20 g/m |
| Cooling air quantity CLHL 3 steps | 300 - 690 m³/h | 300 - 710 m³/h | 310 - 730 m³/h |
| Sound pressure level cooling (SL-L-H)* | • 20-24-43 dB(A) | • 20-24-44 dB(A) | • 22-26-45 dB(A) |
| Sound pressure level heating (SL-L-H) | • 20-24-44 dB(A) | • 20-24 45 dB(A) | • 22-26-46 dB(A) |
| Dimensions (H x W x D) | 293 x 851 x 270 mm | 293 x 851 x 270 mm | 293 x 851 x 270 mm |
| Weight | 14,0 kg | 14,0 kg | 14,0 kg |
| Condensate connection | 16 mm | 16 mm | 16 mm |
| Sound pressure level cooling/heating low-noise | • 35 / 34 dB(A) | • 35 / 37 dB(A) | • 36 / 37 dB(A) |
| Sound pressure level cooling/heating | • 38 / 39 dB(A) | • 40 / 42 dB(A) | • 41 / 42 dB(A) |
| Sound power level cooling/heating low-noise | • 58 / 57 dB(A) | • 58 / 60 dB(A) | • 59 / 60 dB(A) |
| Sound power level cooling/heating | • 61 / 62 dB(A) | • 63 / 65 dB(A) | • 64 / 65 dB(A) |
| Dimensions (H x W x D) | 630 x 800 x 300 mm | 630 x 800 x 300 mm | 630 x 800 x 300 mm |
| Weight | 38,0 kg | 38,0 kg | 38,0 kg |
| Min. outdoor temperature cooling/heating | `-15°C/-15°C | `-15°C/-15°C | `-15°C/-15°C |
